Distributor data pack

EDGE Essential WiFi

Part code: EDWIES

Measures

Ambient temperature, relative humidity and mold risk index

Connectivity

WiFi with no gateway, plus BLE

Optional inputs

Door (dry contact) and flood sensors

Alarms

Email, SMS, phone call and audible beep

Power

4 × AA batteries or USB-C 5 V, switching automatically

https://www.loggerflex.com/en/product/edge-essential-wifi/

EDGE GEO

Part code: EDESGE

Measures

Ambient temperature and relative humidity

Location

Position from cell-tower and WiFi triangulation, sent with every upload; no GPS module

Connectivity

Built-in cellular (eSIM) plus WiFi

Optional inputs

Door (dry contact) and flood sensors

https://www.loggerflex.com/en/product/edge-geo/

EDGE Essential Cellular

Part code: EDCLES

Measures

Ambient temperature, relative humidity and mold risk index

Connectivity

Built-in cellular (eSIM, no SIM card) with automatic WiFi rollover, plus BLE

Optional inputs

Door (dry contact) and flood sensors

Alarms

Email, SMS, phone call and audible beep; power outage alert on USB-C power

Power

4 × AA batteries or USB-C 5 V, switching automatically

https://www.loggerflex.com/en/product/edge-essential-cellular/

EDGE Thermo WiFi

Part code: EDWITR

Measures

Ambient temperature and humidity, plus two external temperature probes

Display

E-paper screen with audible and visual on-device alarms

Connectivity

WiFi with no gateway, plus BLE

Optional inputs

Dry contact input for a door switch, flood sensor or external alarm contact

Alarms

Email, SMS, phone call and audible beep

https://www.loggerflex.com/en/product/edge-thermo-wifi/

EDGE Thermo Cellular

Part code: EDCLTR

Measures

Ambient temperature and humidity, plus two external temperature probes

Display

E-paper screen with audible and visual on-device alarms

Connectivity

Built-in cellular (eSIM, no SIM card) with automatic WiFi rollover, plus BLE

Optional inputs

Dry contact input for a door switch, flood sensor or external alarm contact

Alarms

Email, SMS, phone call and audible beep; power outage alert on USB-C power

https://www.loggerflex.com/en/product/edge-thermo-cellular/

EDGE Pharma WiFi

Part code: EDWIPH

Probes

Two NIST-traceable external temperature probes

Calibration certificate

Validity shown on screen, email reminders before expiry; renew by replacing the probe, not the device

Measures

Ambient temperature and humidity, plus the two probes

Display

E-INK screen with audible and visual on-device alarms

Connectivity

WiFi with no gateway, plus BLE

https://www.loggerflex.com/en/product/edge-pharma-wifi/

EDGE Pharma Cellular

Part code: EDCLPH

Probes

Two NIST-traceable external temperature probes

Calibration certificate

Validity shown on screen, email reminders before expiry; renew by replacing the probe, not the device

Measures

Ambient temperature and humidity, plus the two probes

Display

E-INK screen with audible and visual on-device alarms

Connectivity

Built-in cellular (eSIM, no SIM card) with automatic WiFi rollover, plus BLE

https://www.loggerflex.com/en/product/edge-pharma-cellular/

EDGE Air WiFi

Part code: EDWIAR

Measures

CO2, VOC index, ambient temperature and relative humidity, plus mold risk index

Connectivity

WiFi with no gateway, plus BLE

Alarms

CO2 spike and long-exposure alarms; display, buzzer, email, SMS or phone call

Power

4 × AA batteries or USB-C 5 V, switching automatically

Dimensions

104 × 88 × 30 mm (4.1 × 3.5 × 1.2 in)

https://www.loggerflex.com/en/product/edge-air-wifi/

EDGE Air Cellular

Part code: EDCLAR

Measures

CO2, VOC index, ambient temperature and relative humidity, plus mold risk index

Connectivity

Built-in cellular (eSIM, no SIM card) with automatic WiFi rollover, plus BLE

Alarms

CO2 spike and long-exposure alarms; display, buzzer, email, SMS or phone call

Power

4 × AA batteries or USB-C 5 V, switching automatically

Dimensions

104 × 88 × 30 mm (4.1 × 3.5 × 1.2 in)

https://www.loggerflex.com/en/product/edge-air-cellular/

EDGE Essential WiFi PLUS

Part code: EDWIPL

Probe

Water-resistant external temperature and RH probe on a 1 m (3.3 ft) cable

Measures

Temperature and relative humidity, plus mold risk index

Connectivity

WiFi with no gateway, plus BLE

Optional inputs

Door (dry contact) and flood sensors

Alarms

Email, SMS, phone call and audible beep

https://www.loggerflex.com/en/product/edge-essential-wifi-plus/

EDGE Essential Cell PLUS

Part code: EDCLPL

Probe

Water-resistant external temperature and RH probe on a 1 m (3.3 ft) cable

Measures

Temperature and relative humidity, plus mold risk index

Connectivity

Built-in cellular (eSIM, no SIM card) with automatic WiFi rollover, plus BLE

Optional inputs

Door (dry contact) and flood sensors

Alarms

Email, SMS, phone call and audible beep; power outage alert on USB-C power

https://www.loggerflex.com/en/product/edge-essential-cell-plus/

BLOCK Essential

Part code: BLES00

Being retired

Measures

Ambient temperature and relative humidity (built in)

Connectivity

2.4 GHz WiFi, no gateway

Optional inputs

Port II dry contact (door switch) and Port III flood detector, sold separately

Power

4 × AA batteries (standard models)

https://www.loggerflex.com/en/product/block-essential/

BLOCK External Temp

Part code: BLXT01

Being retired

Probe

Detachable external temperature probe on Port I, -55 °C to +125 °C (-67 °F to +257 °F)

Measures

Ambient temperature and relative humidity (built in)

Connectivity

2.4 GHz WiFi, no gateway

Optional inputs

Port II dry contact (door switch) and Port III flood detector, sold separately

https://www.loggerflex.com/en/product/block-external-temp/

BLOCK THERMO II

Part code: BLXT02

Being retired

Probes

Two independent external temperature probes (Ports I and III), -55 °C to +125 °C (-67 °F to +257 °F)

Measures

Ambient temperature and relative humidity (built in)

Connectivity

2.4 GHz WiFi, no gateway

Optional inputs

Port II dry contact (door switch), sold separately

https://www.loggerflex.com/en/product/block-thermo-ii/

BLOCK CO2

Part code: BLTCO2

Measures

CO2 by NDIR (400 to 5,000 ppm), ambient temperature and relative humidity

Connectivity

2.4 GHz WiFi, no gateway

Optional inputs

Port II dry contact (door switch) and Port III flood detector, sold separately

Protection

IP31 (protected against dripping water, not waterproof)

Lowest operating temperature

-30 °C (-22 °F)

https://www.loggerflex.com/en/product/block-co2/

BLOCK Fluid Pressure & Temp

Part code: BLTPRS-XXXX

EDGE Multi coming

Pressure

Fixed transducer on a 50 cm (20 in) cable with a 1/4" NPT thread; range selected when ordering, from 0–1 bar (0–14.5 psi) to 0–100 bar (0–1,450 psi)

Measures

Fluid pressure, ambient temperature and humidity; external temperature probe (included) on Port I

Optional inputs

Port II pulse counter or digital input, Port III flood detector

Connectivity

2.4 GHz WiFi, no gateway

Weight

325 g (11.5 oz)

https://www.loggerflex.com/en/product/block-fluid-pressure/

BLOCK Temp + Current

Part code: BLXTCS

EDGE Multi coming

Measures

AC load current (split-core CT clamp), external temperature probe, ambient temperature and humidity

Energy

Estimated energy consumption (kWh)

Connectivity

2.4 GHz WiFi, no gateway

Weight

295 g (10.4 oz)

Dimensions

53 × 43 × 133 mm (2.1 × 1.7 × 5.2 in)

https://www.loggerflex.com/en/product/block-temp-current/

BLOCK Light & Temp

Part code: BLTLIT

Being retired

Measures

Illuminance and UV index (external probe), external temperature probe, ambient temperature and humidity

Connectivity

2.4 GHz WiFi, no gateway

Optional inputs

Port II dry contact (door switch), sold separately

https://www.loggerflex.com/en/product/block-light--temp/

BLOCK Pulse Counter

Part code: BLPULS

Being retired

Optional inputs

Two pulse inputs (Ports I and III) for dry contact meter outputs

Measures

Cumulative pulses from two meters, plus ambient temperature and humidity

Connectivity

2.4 GHz WiFi, no gateway

Weight

195 g (6.9 oz)

Dimensions

53 × 43 × 133 mm (2.1 × 1.7 × 5.2 in)

https://www.loggerflex.com/en/product/block-pulse-counter/

BLOCK ANALOG 4-20 mA

Part code: BLA420

Input

4-20 mA analog input on Port III, with an included terminal adapter (R and GND)

Measures

Mapped 4-20 mA value, plus ambient temperature and humidity

Connectivity

2.4 GHz WiFi, no gateway

Weight

195 g (6.9 oz)

Dimensions

53 × 43 × 133 mm (2.1 × 1.7 × 5.2 in)

https://www.loggerflex.com/en/product/block-analog-420/

BLOCK Barometer & Temp

Part code: BLTBAR

Being retired

Measures

Barometric pressure (300 to 1,100 hPa, 4.4 to 16.0 psi), ambient temperature and relative humidity

Connectivity

2.4 GHz WiFi, no gateway

Optional inputs

Port II dry contact (door switch) and Port III flood detector, sold separately

https://www.loggerflex.com/en/product/block-barometer--temp/

BLOCK Differential Pressure

Part code: BLDIFP

Being retired

Measures

Differential air pressure, external temperature probe, ambient temperature and humidity

Pressure hose

2 mm (0.08 in) silicone hose, 600 mm (2 ft), included

Connectivity

2.4 GHz WiFi, no gateway

Weight

198 g (7 oz)

Dimensions

53 × 43 × 133 mm (2.1 × 1.7 × 5.2 in)

https://www.loggerflex.com/en/product/block-diff-pressure/

Cellular Water Meter

Part code: CWMETER

Measurement

Ultrasonic transit-time, no moving parts

Accuracy

Class 2 (ISO 4064 / OIML R49), R250

Connectivity

Built-in 4G LTE with a data SIM managed by LoggerFlex; no WiFi, gateway or wiring

Reporting

One report a day, with leak, burst and fault alarms on that daily report

Battery

Sealed lithium battery, rated for more than 6 years; it can be replaced, but that means breaking the factory seal

https://www.loggerflex.com/en/product/cellular-water-meter/

MODGATE Modbus Gateway

Part code: MODGAT

Interface

RS485 Modbus RTU with configurable registers

Connectivity

WiFi and cellular, plus BLE

Weight

298 g (10.5 oz)

Dimensions

220 × 55 × 48 mm (8.7 × 2.2 × 1.9 in)

https://www.loggerflex.com/en/product/single-modbus-bridge/

LF M-Bus Cloud Bridge

Part code: LFMBUS

Interface

M-Bus and Modbus master

Connectivity

LAN and WiFi

https://www.loggerflex.com/en/product/lf-m-bus-cloud-bridge/

Agrimax Smart Soil Sensor

Part code: AGRMAX

Measures

Soil temperature at root depth, relative soil moisture and ambient temperature

Soil calibration

One-button calibration sets your soil's zero reference

Connectivity

WiFi and cellular with automatic rollover

https://www.loggerflex.com/en/product/agrimax-smart-soil-sensor/

Microthermo

Part code: NFCMIC

Type

Single-use NFC temperature data logger

Measuring range

-20 °C to +70 °C (-4 °F to +158 °F)

Accuracy

±0.5 °C (±0.9 °F); no NIST certificate

Recording interval

10 minutes as standard; any interval from 1 minute to 24 hours, configured to order; first reading 10 minutes after activation as standard

Memory

4,000 readings, about 4 weeks at 10 minutes; stops when full (standard) or continuous mode that overwrites the oldest reading, configured to order

https://www.loggerflex.com/en/product/microthermo/

LoggerFlex Halo

Part code: LF-HALO-360

Display

1.85" round colour touchscreen with a status ring and audible beeper

Gateway function

Relays encrypted records from nearby LoggerFlex devices to the cloud over WiFi

Security

AES-128 encrypted telegrams

Weight

49 g (1.7 oz)

Dimensions

57.5 × 57.5 × 10.6 mm (2.3 × 2.3 × 0.4 in)

https://www.loggerflex.com/en/product/halo-360/

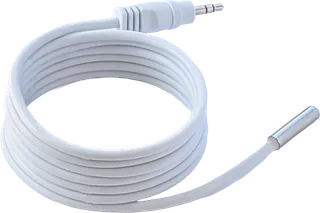

Digital Waterproof Temp Sensor

Part code: DSTS15

Range

-55 °C … +125 °C (-67 °F … +257 °F)

Cable

1.5 m (4.9 ft) lead

Connection

Port I or Port III

https://www.loggerflex.com/en/product/digital-temp-sensor/

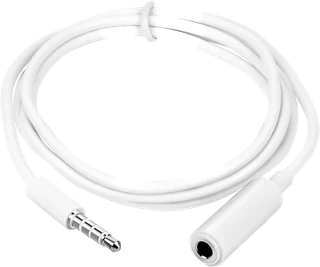

3m (10 ft) Sensor Extension

Part code: AUDEX3

Cable

3 m (10 ft)

Use

Lets the logger sit outside the cold space it is measuring

https://www.loggerflex.com/en/product/sensor-extension-3m/

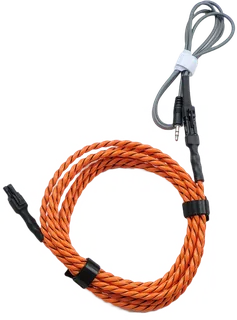

Flood Detector Kit

Part code: FLDKT3

Use

Leak-sensing cable that detects water anywhere along its length

Connection

Flood detector or digital input port of EDGE and BLOCK loggers

https://www.loggerflex.com/en/product/flood-detector-kit/

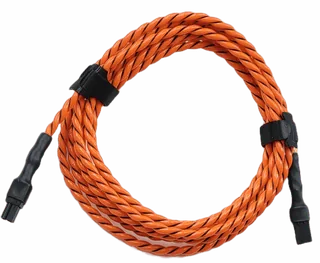

Flood Sensor Extension

Part code: FLDEX3

Use

Extends the leak-sensing run of the flood detector kit

Type

Leak-sensing extension cable

Works with

Flood detector kit

Compatible loggers

EDGE data loggers with a flood detector port

https://www.loggerflex.com/en/product/flood-extension/

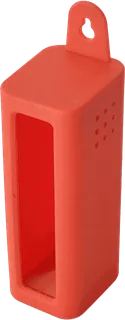

Silicone Cover

Part code: BLSLCO

Use

Protective sleeve for wash-down and knock-prone installations

Type

Protective cover

Material

Silicone

Compatible loggers

BLOCK WiFi sensors

https://www.loggerflex.com/en/product/silicone-cover/
